商品名稱

羅馬瓦 TB-4®

Series
此瓦型源於羅馬時期，是南歐及地中海地區最典型的屋瓦

瓦片長度: 442 mm
瓦片寬度: 258 mm
平方米重量: 43.52 /Kg
平方米使用量: 12.8 /片

規格介紹:

瓦片長度: 439 mm

瓦片寬度: 260 mm

平方米重量: 40.32 /Kg

平方米使用量: 12.8 /片

詳細介紹:

BorjaCLASS

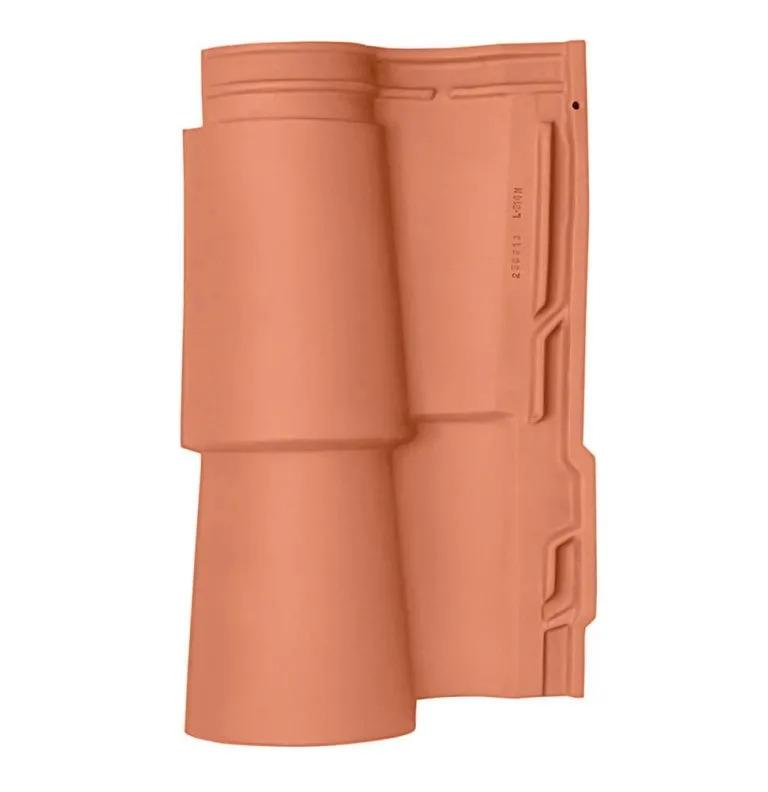

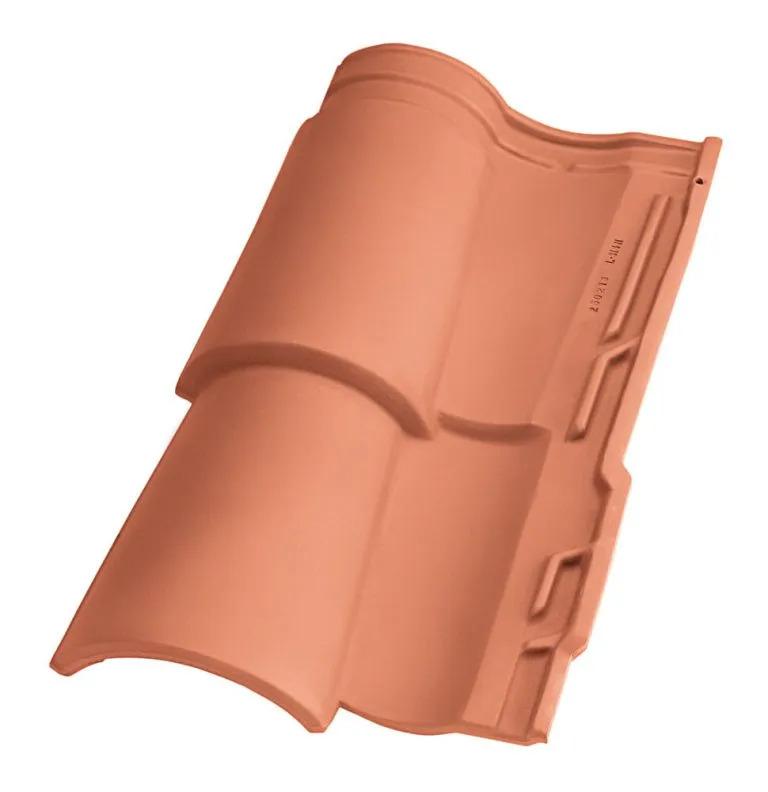

TB-4® roof tile is an exclusive one piece high profile S-interlocking roof tile design that combines the curved profile as a cover-pan result (curved roof tile effect) patented as waterproof assembly in vertical rows and horizontal courses.

The effect of S-interlocking TB-4® roof tile on deck is 50 units per sq.m. curved roof tiles, with the installation of just over 12 tiles.

Fits small deviations both false angle section as rounded decks without cuts, thanks to its lateral interlocking area.

Approximate values: If the roof tiles are installed on battens, the useful length must be calculated on site. A tolerance of ± 2% is allowed on the dimensions of the roof tiles according to UNE – EN 1024.

Type: Double lateral overlapping and double Lengthinal overlapping. Installation must comply with Code of practice for the design and fixing of roofs with clay roofing tiles for the region and Tejas Borja specifications.

(*) Check pitch pannel according to the roof length and the geographical area.

羅馬瓦 TB-4®適用顏色
	TB-4®

◉ 大地色系列

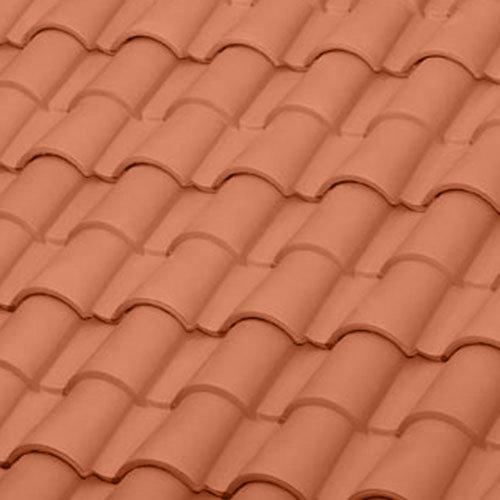

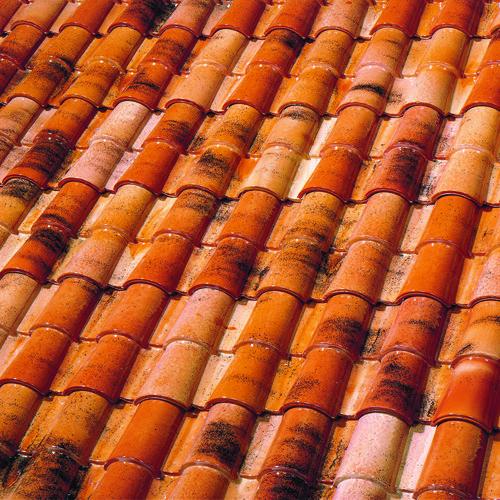

百年紅	秋色

◉ TAMIZADOS

Blue	Grey	Slate	Green

Brown

◉ GLAZED

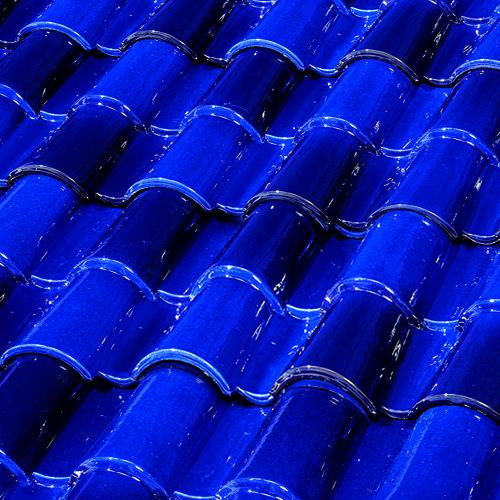

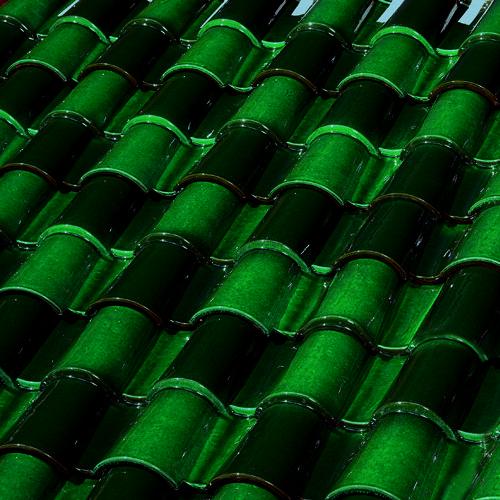

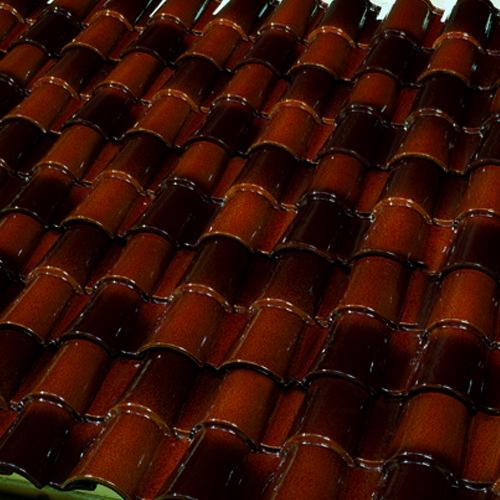

Cobalt Blue	Cognac	Garmin	Green

◉ METALLIC

Lead	Cooper

◉ INSPIRATION

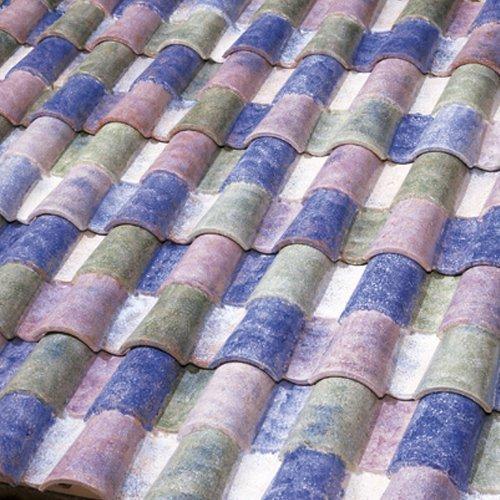

Lienzo de Mar	Indigo	Ocre

◉ IRISADOS

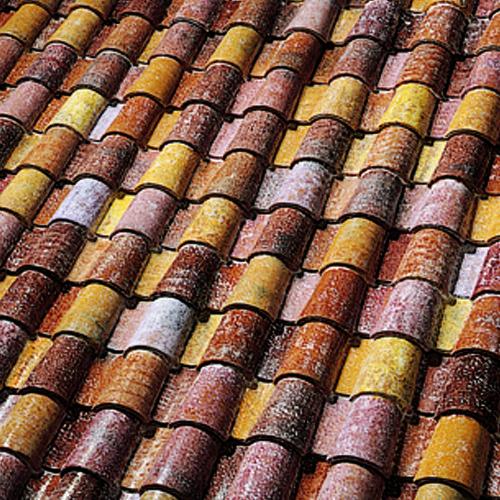

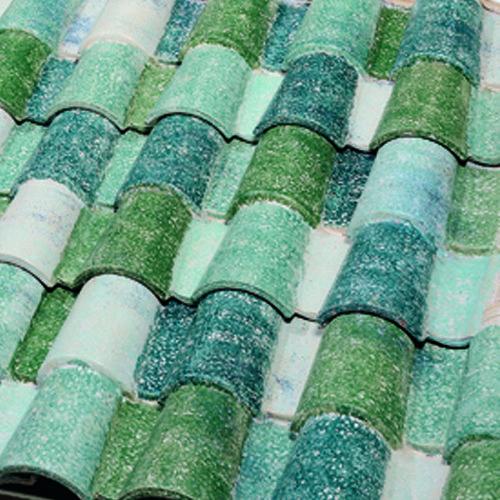

Blue	Green	Cognac

◉ CRYSTAL

Elegant	Crystal Red

羅馬瓦 TB-4® 適用配件
	TB-4®

M型脊瓦

M型脊瓦	M型脊瓦頭-三角	M型斜脊瓦頭-鳥嘴	M型斜脊瓦頭

C型脊瓦

C型脊瓦	C型脊瓦頭-三角	C型脊瓦頭-鳥嘴	C型斜脊瓦頭

邊瓦

圓角邊瓦	直角邊瓦	共用邊瓦

瓦擋

通用瓦擋

半瓦

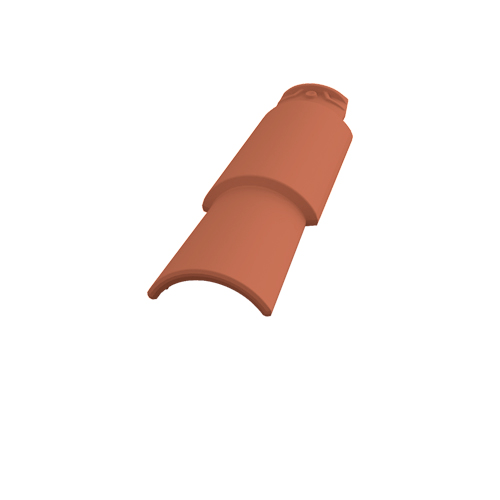

TB-4 半瓦

透氣瓦

TB-4 透氣瓦

煙囪座

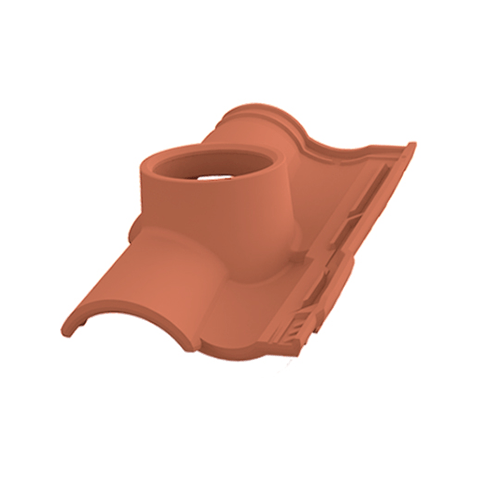

TB-4 煙囪座

煙囪

130 煙囪	透氣煙囪

屋簷鳥止

共用鳥止

裝飾配件

A.圓球	B.橡實	C.松毬	D.清真尖塔

E.加利戈尖塔	F.鬱金香	G.長空塔	H.孔雀鴿
