商品名稱

馬賽瓦 TBAF-10 Tech

Series
此瓦型在十九世紀流行於法國馬賽地區。台灣常見的水泥瓦就是源自於馬賽瓦

瓦片長度: 475 mm
瓦片寬度: 262 mm
平方米重量: 33.7 /Kg
平方米使用量: 10.7 /片

規格介紹:

瓦片長度: 475 mm

瓦片寬度: 262 mm

平方米重量: 33.7 /Kg

平方米使用量: 10.7 /片

詳細介紹:

BorjaTECH

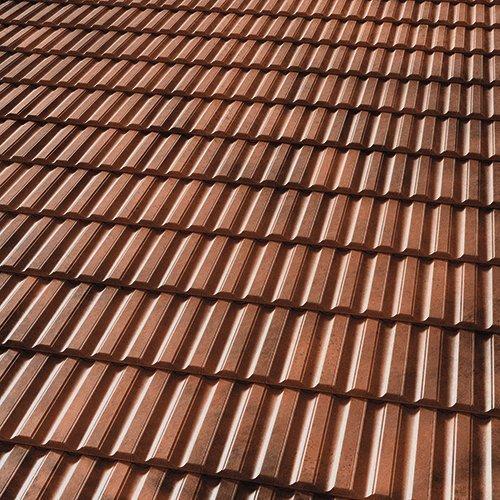

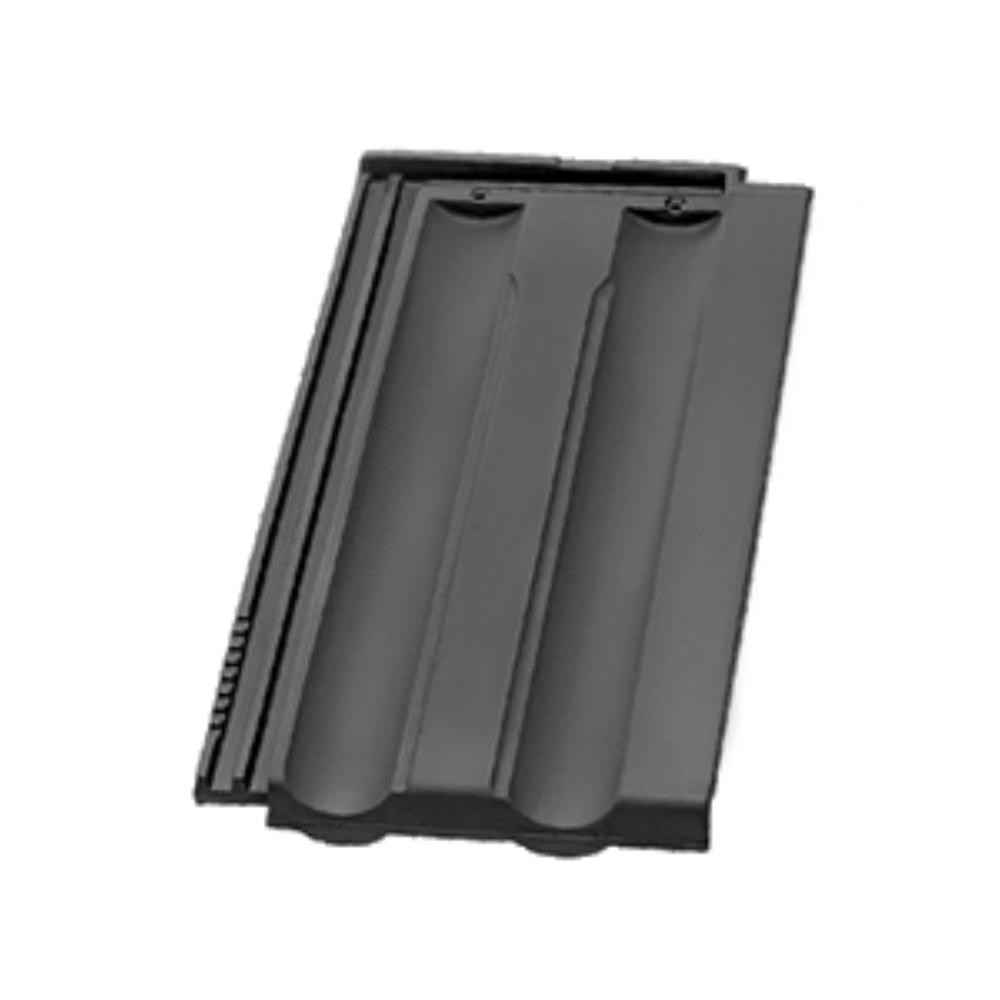

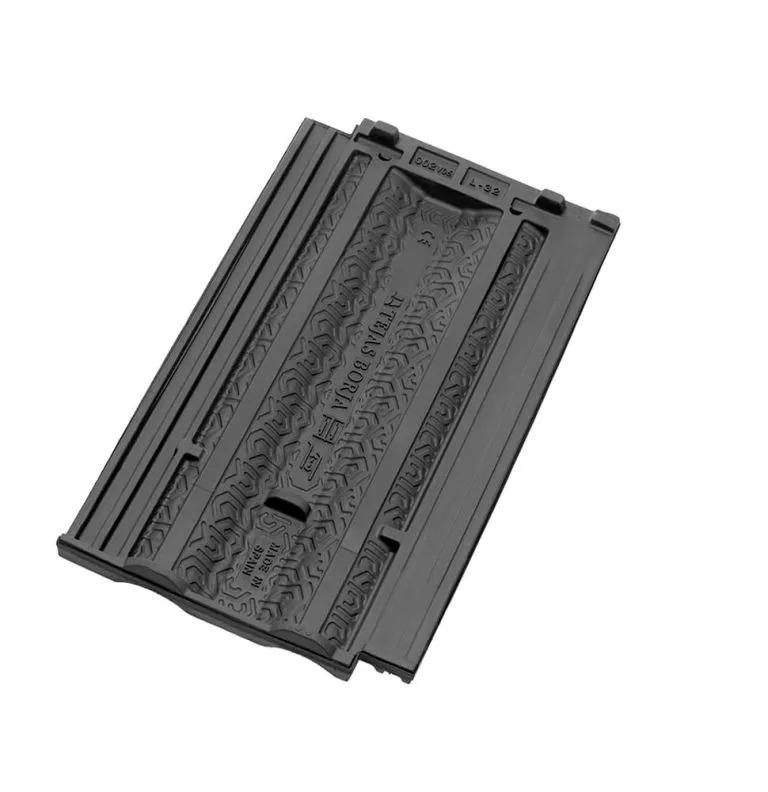

Technica-10 roofing tile is an innovative flat tile in a Marseilles roof tile style. Safer and technologically up-to-date. The most versatile format on the market.

A combination of tradition and technology to make all kinds of projects possible, from the most avant-garde to the most classic.

● Deep channel, extremply watertight

● Great definition

● Easy to install

The certified characteristics for the NF Terracotta tiles are : Structural faults, the geometric characteristics , resistance to flexural strength , impermeability , frost resistance for all products made with red mixture. AFNOR Certification: 11 rue Francis de Pressensé // 93571 LA PLAINE SAINT-DENIS CEDEX //www.marque-nf.com

Approximate values: If the roof tiles are installed on battens, the useful length must be calculated on site. A tolerance of ± 2% is allowed on the dimensions of the roof tiles according to UNE-EN 1024.

(*) In zone 1 (protected area), arranged in staggered formation with waterproof laminate and batten distance of 380 mm on a skirt of up to 6.5 m. Check pitch pannel according to the roof length and the geographical area according to UNE-EN 136020.

馬賽瓦 TBAF-10 Tech 適用顏色
	TBAF-10Tech

單色系列

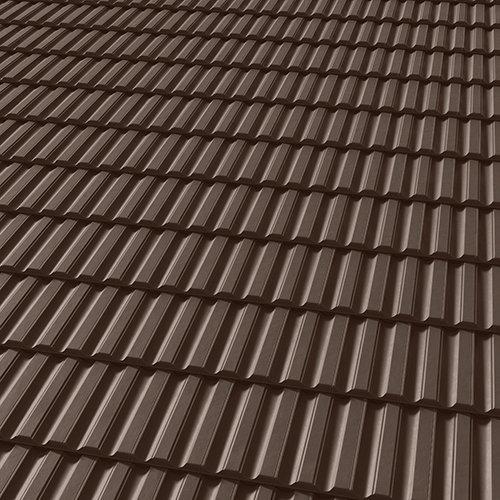

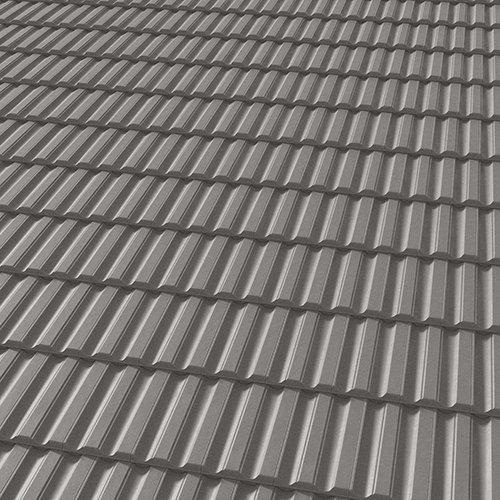

石墨黑	鐵灰	咖啡

大地色系列

百年紅	歲月紅

馬賽瓦 TBAF-10 Tech 適用顏色
	TBAF-10Tech

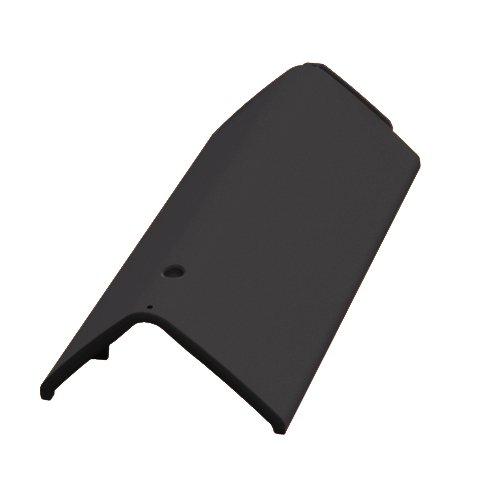

F型脊瓦

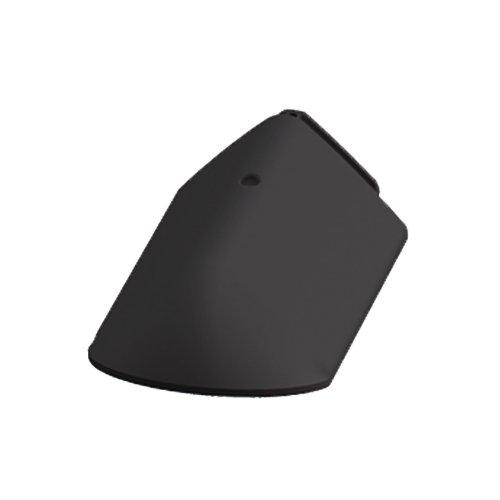

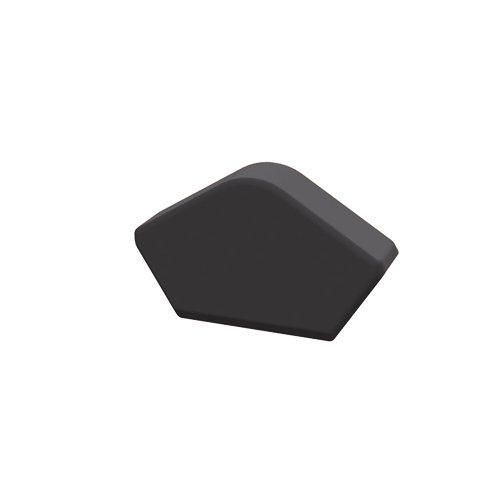

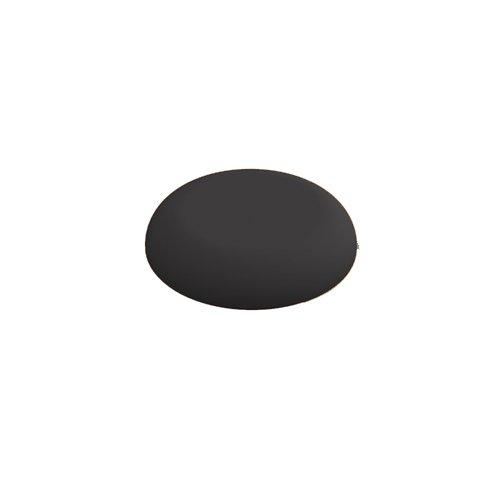

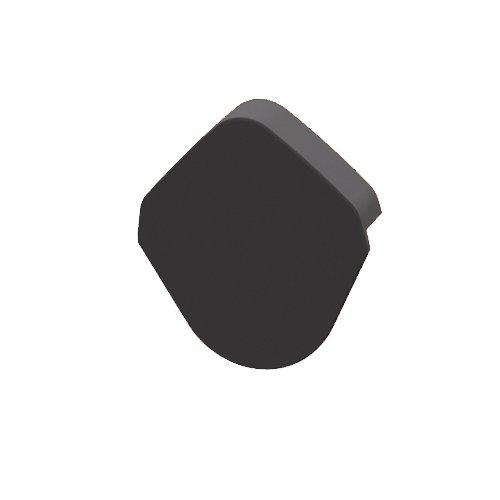

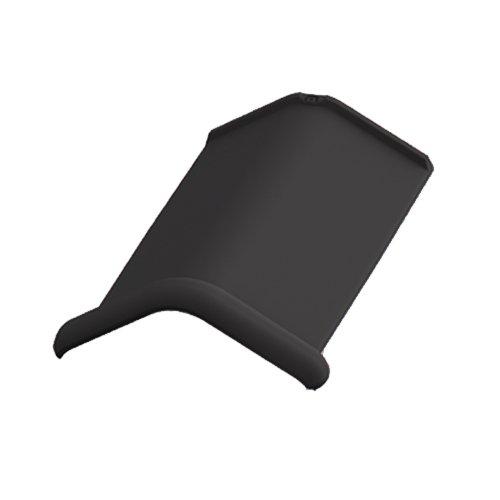

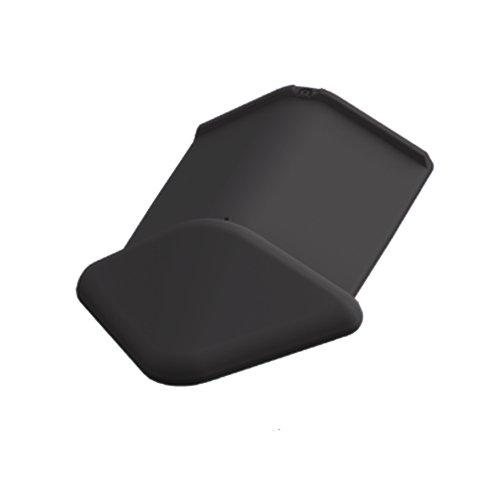

F型脊瓦	F型脊瓦頭	F型斜脊瓦頭

Low 100º 型脊瓦

F型 Low 100º 脊瓦	F型 Low 100º 脊瓦頭	F型 Low 100º 斜脊瓦頭

邊瓦

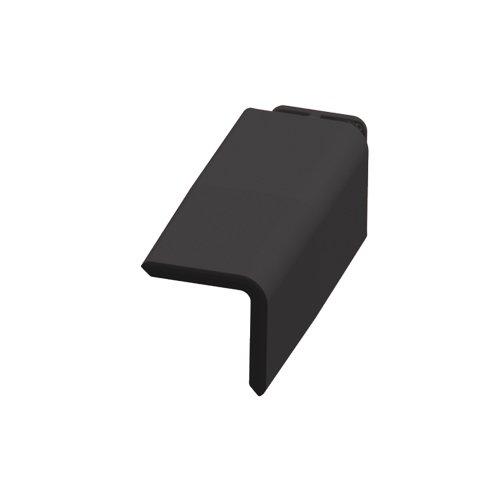

共用邊瓦

半瓦

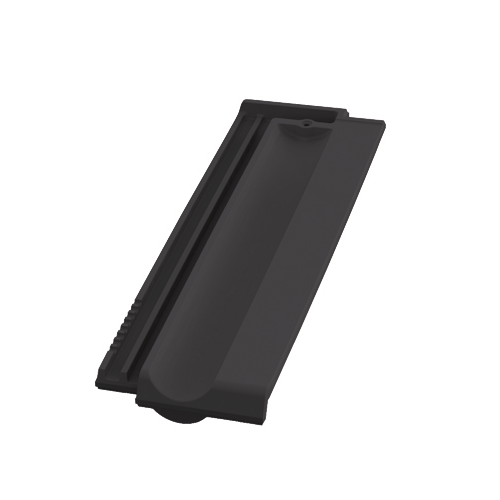

TBAF-10Tech 半瓦

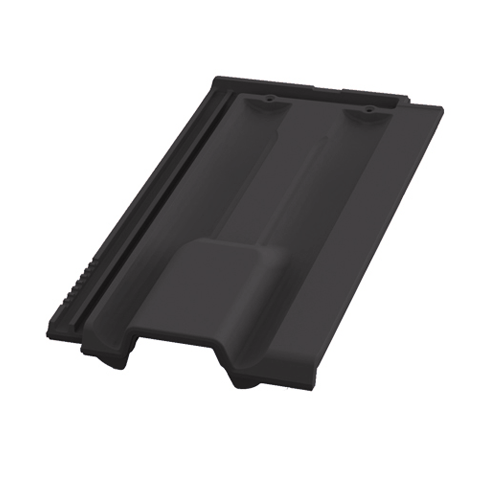

透氣瓦

TBAF-10Tech 透氣瓦

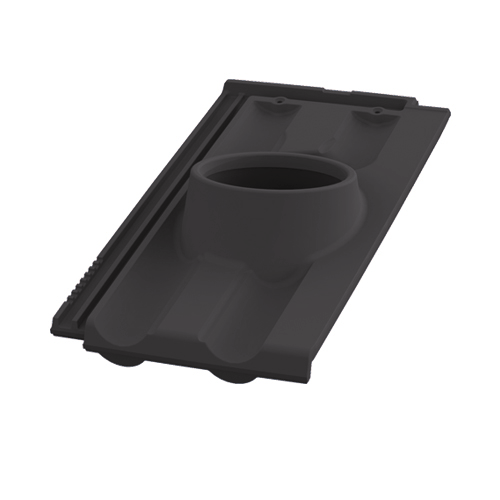

煙囪座

TBAF-10Tech 煙囪座

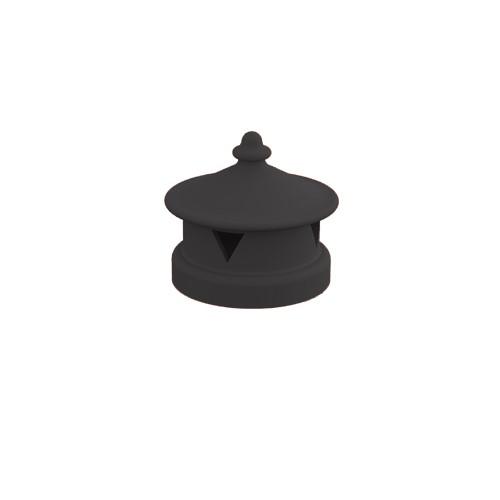

煙囪

140 煙囪	透氣煙囪
